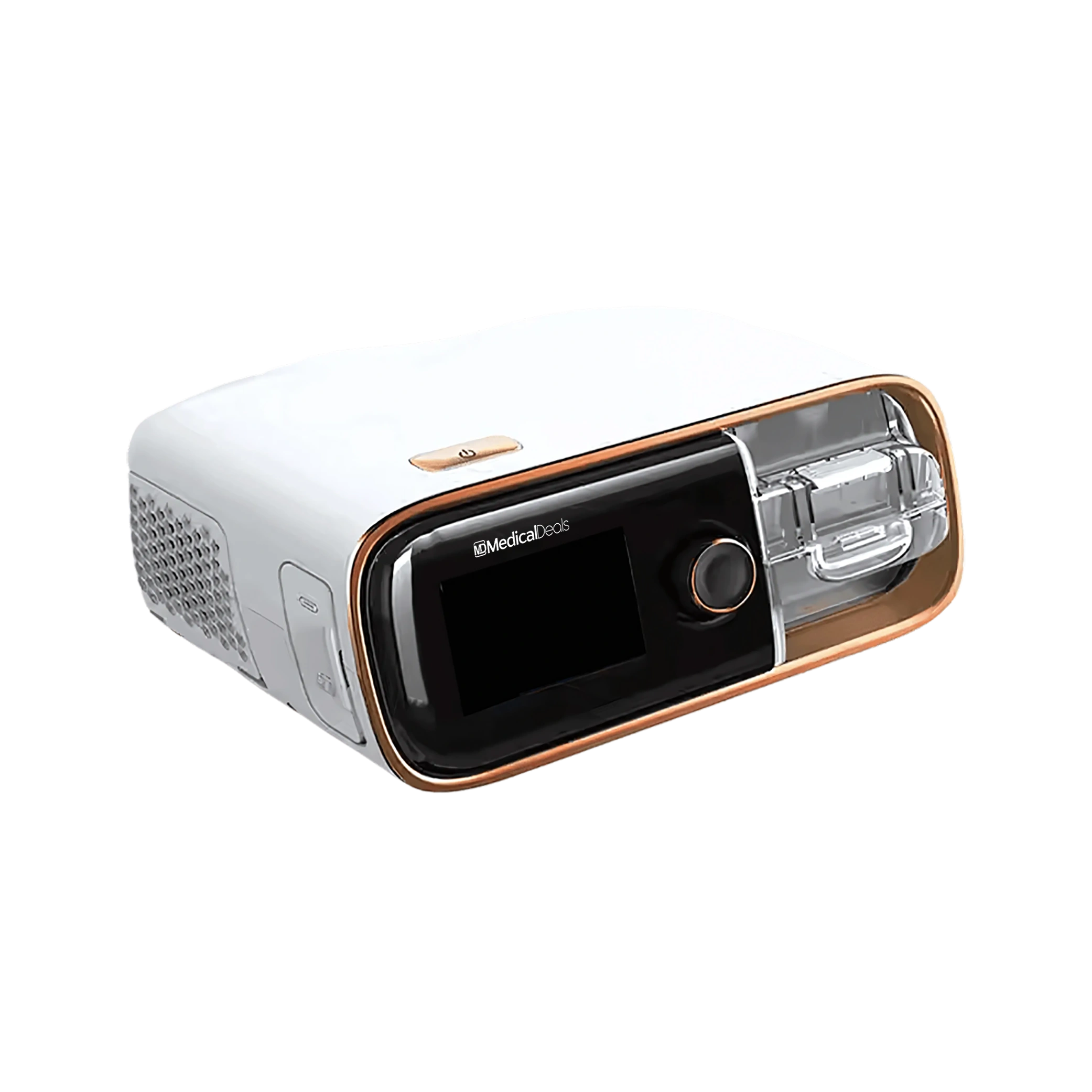

BiPAP Therapy Device MD-BTD-1000 features a 3.5-inch color TFT screen that displays real-time therapy parameters for seamless monitoring. It ensures superior pressure control with an expiratory pressure range of 4 to 25 cm H₂O and an inspiratory pressure range of up to 30 cm H₂O for effective ventilation. With multiple therapy modes, this device offers personalized respiratory care for a wide range of patients. Our product is ideal for both stationary and portable applications, delivering an unparalleled level of respiratory support tailored to individual needs.
$ 778 : Each of 1
Specifications
| Display | 3.5-inch color TFT screen |
| Expiratory Pressure Range | 4 cm H2O to 25 cm HH2O (auto-adjusting) |
| Inspiratory Pressure Range | 4 cm H2O to 30 cm H2O |
| Operating Modes | CPAP (Continuous Positive Airway Pressure), AUTO (Auto-Adjusting CPAP), Auto S, S, T, ST, APCV |
| Pressure rise/fall | 100ms to 900ms |
| Pressure difference | 2 cm H2O to 10 cm H2O |
| I/E ratio | 10% to 90% |
| I/E sensitivity | 5 levels |
| Backup rate | 5 bpm to 60 bpm, step size: 1 bpm Tolerance: ± 1 bpm |
| Ramp Time | Adjustable from 0 to 60 minutes |
| Target tidal volume | 200 to 1200 ml, Step size: 10 ml |
| Noise Level | Less than 29 dB under 10 cm H2O pressure |
| Humidity level | Integrated heated humidifier with levels 1 to 5 |
| Heating Tube Temperature | Adjustable from 10ºC to 30ºC (1ºC increments) |
| Bluetooth | Connectable to pulse oximeter |
| Mobile network | Optional |
| Data cloud storage | Optional |
| Data Storage | TF card for data recording, Greater than 5 years |
| Tubing | yes |
| Alarm | Mask fall off alarm, asphyxia alarm, pressure abnormality, tubing abnormality |
| Flight Mode | Disables mobile network signals when flight mode is on |
| Functionality | Preheat: ON/OFF flight mode: ON/OFF |
| Power Supply | Input: AC 100 to 240V, 2.1A, 50 to 60Hz 1.5 Max |
| Dimensions | 26.88 × 17.25 × 11.85 cm |
| Weight | 4.07 kg |
Features
Standard Accessories
| Accessories | Quantity |
| Integrated heated humidifier | 1 pc |
| Water tank | 1 pc |
| Power lead | 1 pc |
| Travel bag | 1 pc |
| User manual | 1 pc |
| Air filter | 1 pc |
| SD card | 1 pc |
| Full face mask | 1 pc |
| Air tubing | 1 pc |
Applications
BiPAP Therapy Device MD-BTD-1000 is designed for comprehensive respiratory support in conditions such as obstructive and central sleep apnea, chronic obstructive pulmonary disease, obesity hypoventilation syndrome, neuromuscular disorders and restrictive lung disease.
Medical Deals BiPAP Therapy Devices are advanced, non-invasive ventilatory support systems engineered to provide precise and adaptive respiratory assistance. They leverage intelligent algorithms to dynamically optimize pressure for superior therapy. With intuitive touchscreen interfaces, user-friendly controls, and multiple therapy modes, these devices cater to diverse patient conditions. Our products offer superior respiratory support, promoting better sleep quality, improved oxygenation, and an enhanced quality of life.
