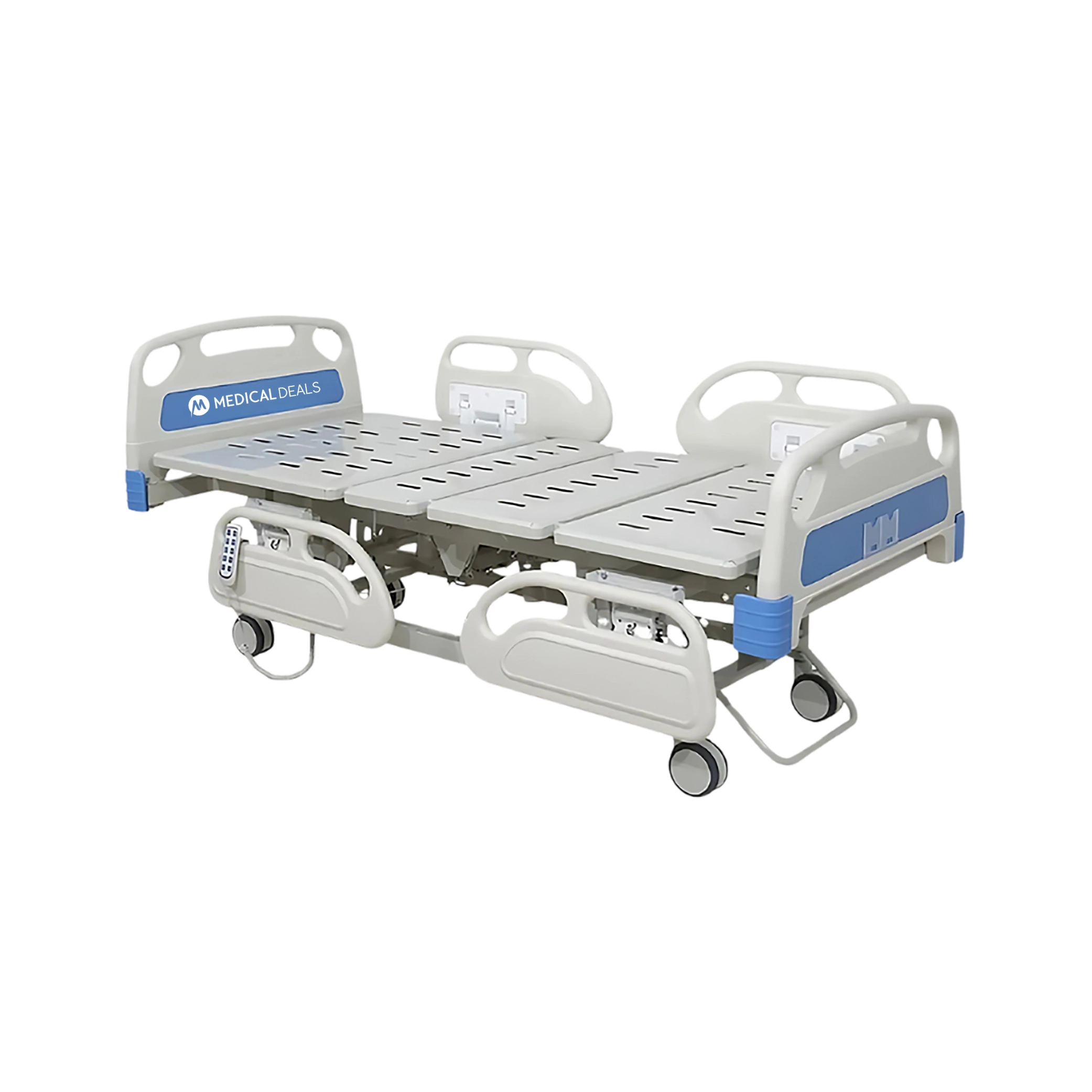

Three-Function Electric Hospital Bed MD-TEHB-5002

Three-Function Electric Hospital Bed MD-TEHB-5002

Three-Function Electric Hospital Bed MD-TEHB-5002 is capable of supporting up to 250kg. It offers adjustable height from 480mm to 720mm. The steel frame, treated with sandblasting ensures durability and resistance to wear. Its backrest and footrest have adjustable angles for enhanced patient comfort. The bed board consists of four steel sections for reliable support. Our hospital bed features a remote-controlled handset for smooth adjustments.

Specifications

Backrest Max Upward Angle 80°±5°
Footrest Max Upward Angle 45°±5°
Load Capacity 250 kg
Height Adjustment 480 to 720 mm (±20mm)
Wheel Diameter Φ125 mm
Frame Steel
Treated by sand blasting
Electrostatic powder coating
Dimension (L × W × H) 2100 × 1000 × 720 mm (±20mm)
Platform Dimension 1940 × 900 mm (±20mm)
Packaging Dimension 2140 × 1040 × 500 mm
Net Weight 120 kg
Gross Weight 140 kg

Features

  • Protective coating steel frame

  • 4section steel bed board

  • Detachable ABS headboard, footboard and side rails

  • Silent castors with central-controlled brakes

  • Remote controlled

Standard Accessories

  • I.V pole

  • I.V pole holes × 4

  • Drainage hooks × 2

Applications

Our Three-Function Electric Hospital Bed is used in hospitals, clinics, and care facilities for providing adjustable patient positioning, aiding in medical care and patient recovery.
