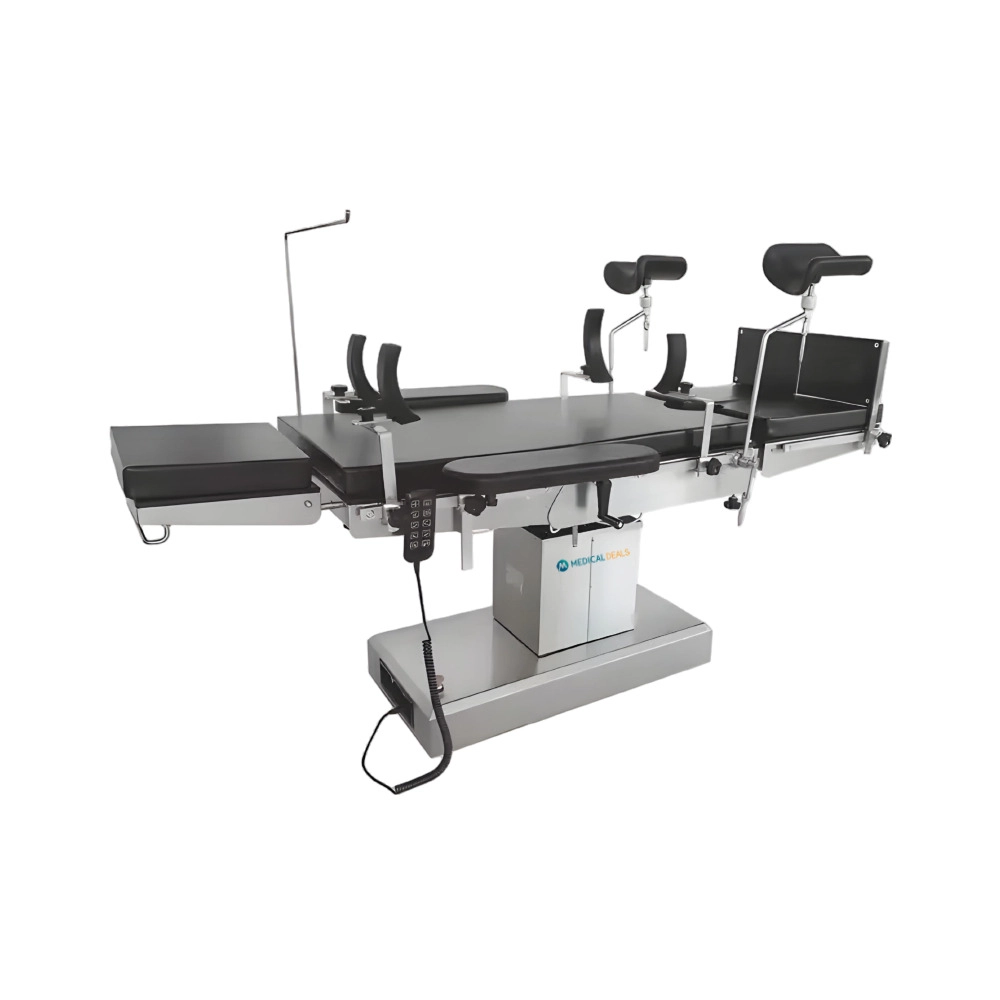

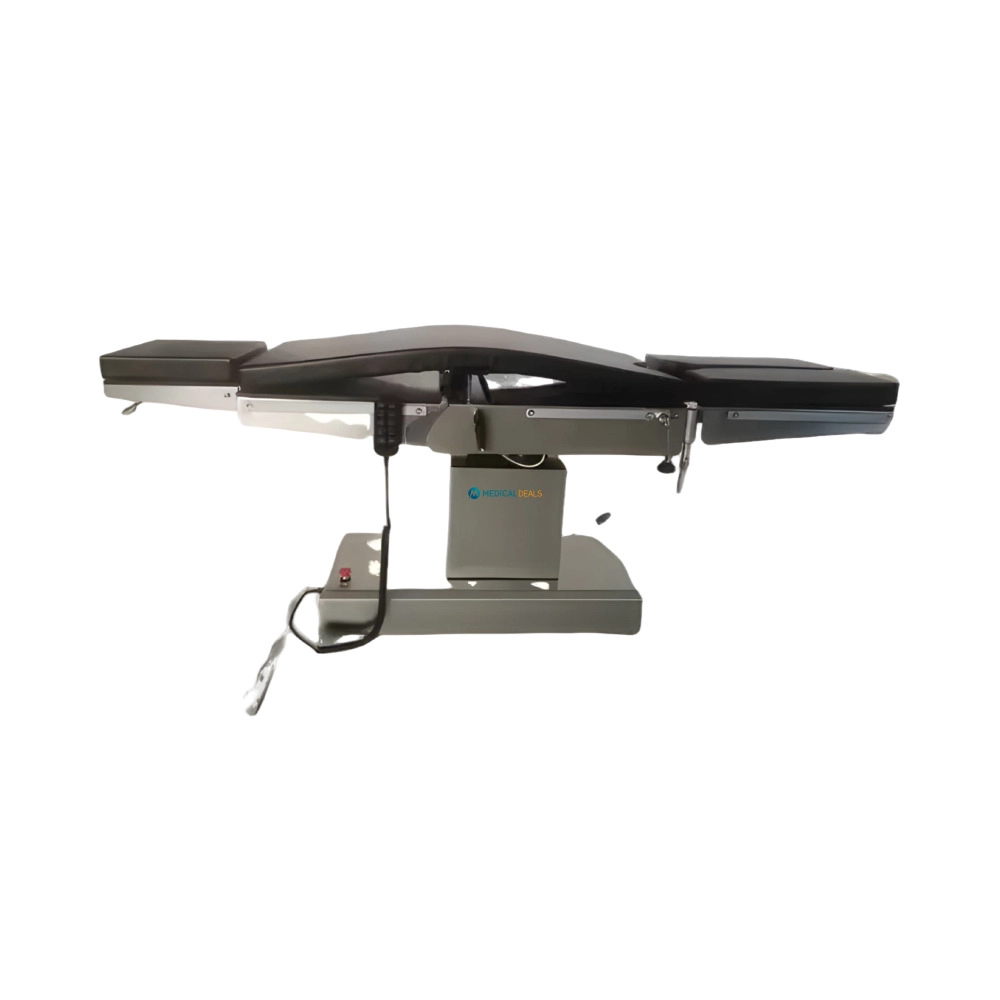

Electric Motor Operating Table MD-MOT-1000 provides features like Leg plate(up/down) ≥ 90 and ≥ 80° Back plate(up) and ≥30° back plate (down). It can be easily adjusted with electric motors, offering smooth and precise positioning. It includes adjustments for height, tilt, and backrest, which can be controlled via a footswitch or a remote control adjustment. Our products safety features like locking mechanism and wheels secure the position and prevent unintended adjustments during surgeries.
Specifications
| Leg plate (Up/Down) | ≥90° |
| Back plate (Up) | ≥80° |
| Back plate (Down) | ≥30° |
| Trendelenburg | ≥25° |
| Reverse Trendelenburg | ≥25° |
| Lateral tilt | ≥20° |
| Upper Head rest | ≥55° |
| Lower Head rest | ≥90° |
| Back rest | ≥45° |
| Backward and forward movement | ≥ 350 mm |
| Lifting Speed | 4 to 16 mm/s |
| Ingress Protection | IPX4 |
| Power | Input: 220V (AC), 50Hz |
| Battery | ≥ 2.4AH |
| Dimension | 2100 × 500 × 750 mm |
| Load bearing capacity | 135 kg |
| Net weight | 210 kg |
Features
Smooth and precise adjustments
Adjustable backrest and leg sections
Easy-to-use electric control panel
Safe load bearing capacity
Integrated battery backup
User-friendly operation
Ensure patient comfort and safety
Applications
Electric Motor Operating System MD-MOT-1000 provides advanced features which make it suitable for a wide range of procedures like bones, joints, and musculoskeletal system, including joint replacements, fracture repairs, and spinal surgeries
Electric Motor Operating table are motorized tables which are used to provide efficiency, comfort and safety for both patients and surgical team. They are operated with a handheld remote. They offer safety with overload protection and are thus quick and accurate in positioning. They are ergonomically designed thus reducing time spent on manual positioning. They are suitable for wide range of medical setups like general surgery, orthopedics, gynecology, and urology.
