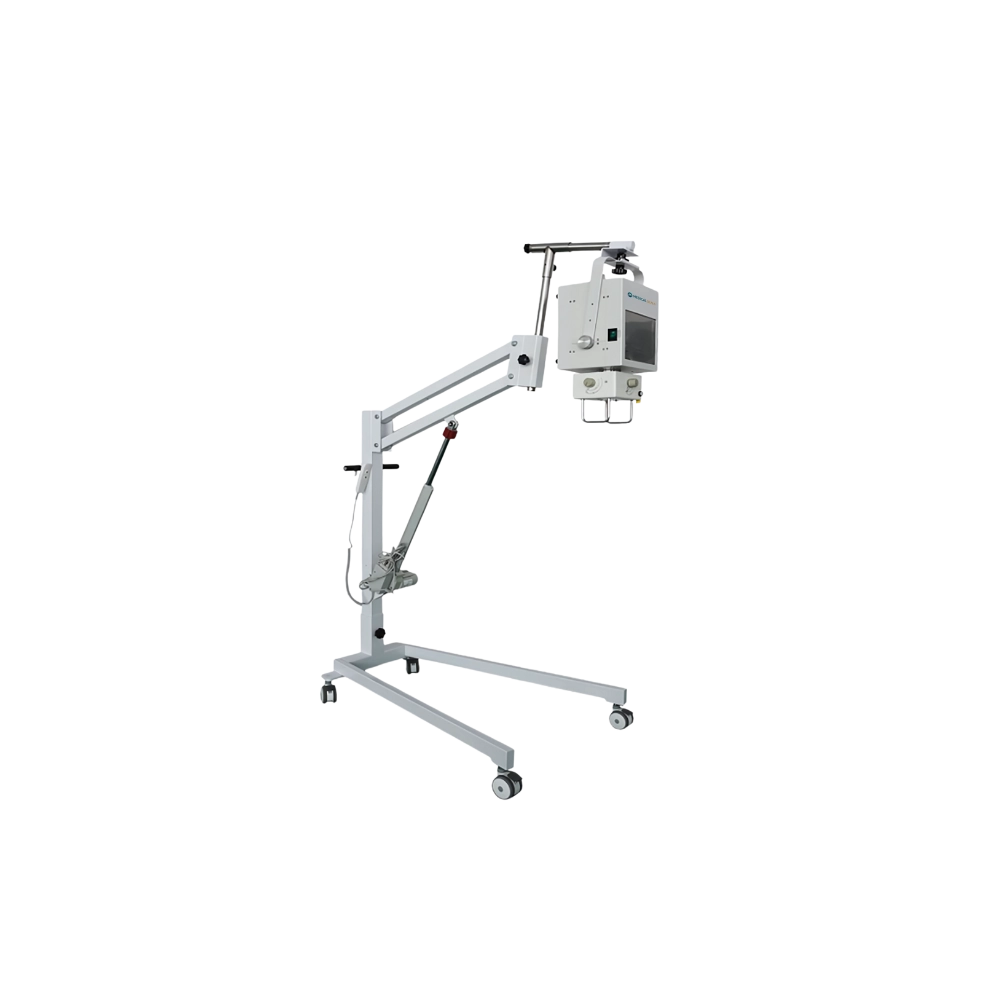

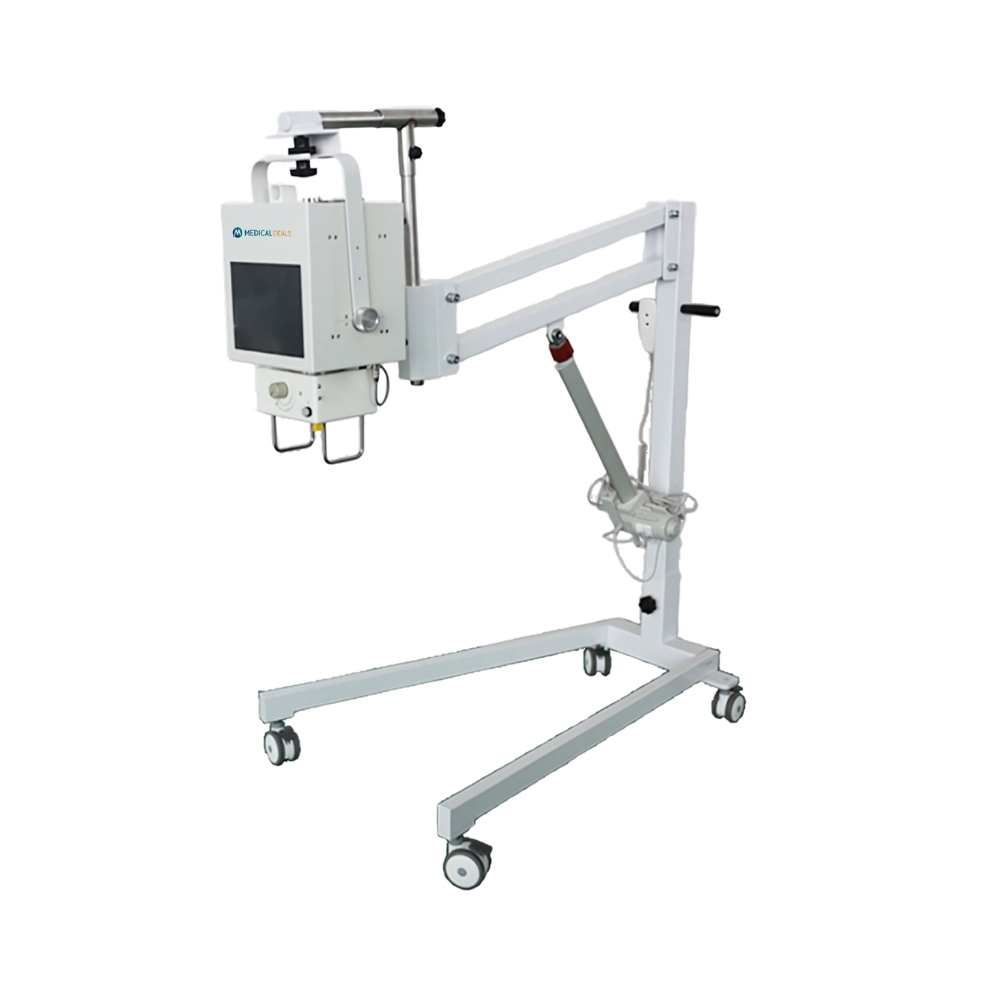

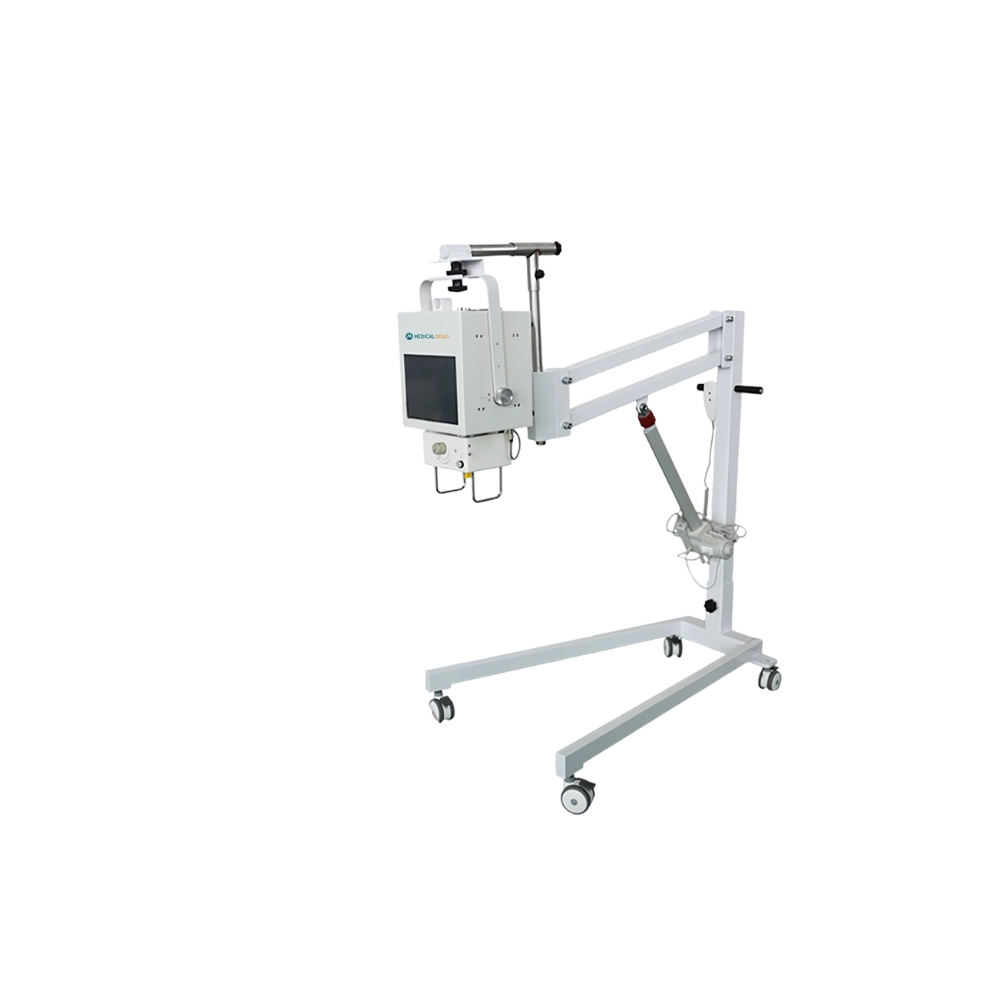

Portable X-Ray Machine MD-PXM1000 is equipped with a flat panel detector for high-resolution imaging and accurate diagnosis. It comes with a nominal X-ray tube that has dual focal spot values of 0.6mm and 1.8mm. It is integrated with a collimator with a maximum X-ray coverage range of 430mm x 430mm optimizing image clarity and patient safety. Our X-ray machine consists of DR image acquisition and processing software facilitating image storage and retrieval.
Specifications
| Nominal Focal Spot Value | 0.6mm(Small Focus) 1.8mm(Large Focus) |
| Nominal X-Ray Tube Voltage | 125KV |
| Anode Angle | 15° |
| Maximum X-Ray Field Coverage Range | 430× 430 mm |
| Material | Tungsten |
| Collimator | Inside filter: 1mm AL |
| Inverter Frequency | 100kHz,±5% |
| Kv Range | 40kV to 125kV |
| Ma Range | 10 mA to 100 mA |
| Ms Range | 1ms to 4000 ms |
| Ma Range/s | 0.1mAs to 200mAs |
| Exposure Mode | kV-mAs, kV-mA-ms |
| Communication Interface | RS-232 |
| High-Voltage Generator Output Power | 5.6kW |
| Rated Voltage | 220VAC,±10%,50Hz/DC24V |
| Dimension | 480mm ×320 ×223 mm |
| Weight | 17.4kg |
Features
RS-232 communication interface
PACS integration
Dual exposure modes
User-friendly interface
Standard Accessories
Mobile Rack
X-Ray Unit
Flat Panel Detector
Workstation
Optional Accessories
Printer
Chest stand
Table
Applications
Portable X-ray Machine is widely used for emergency medicine, intensive care units, orthopedics, nursing homes, dental and oral health etc.
Our Portable X-Ray Machine is compact and designed for maximum mobility and ease of use in various medical environments. These machines deliver high-resolution images with clarity, ensuring accurate diagnosis. They feature seamless compatibility with PACS allowing for efficient storage, retrieval, and sharing of images. Our machines equipped with user-friendly digital interfaces ensure smooth operation. They also offer a battery-powered option for reliable use in remote areas, emergencies, or field operations.
