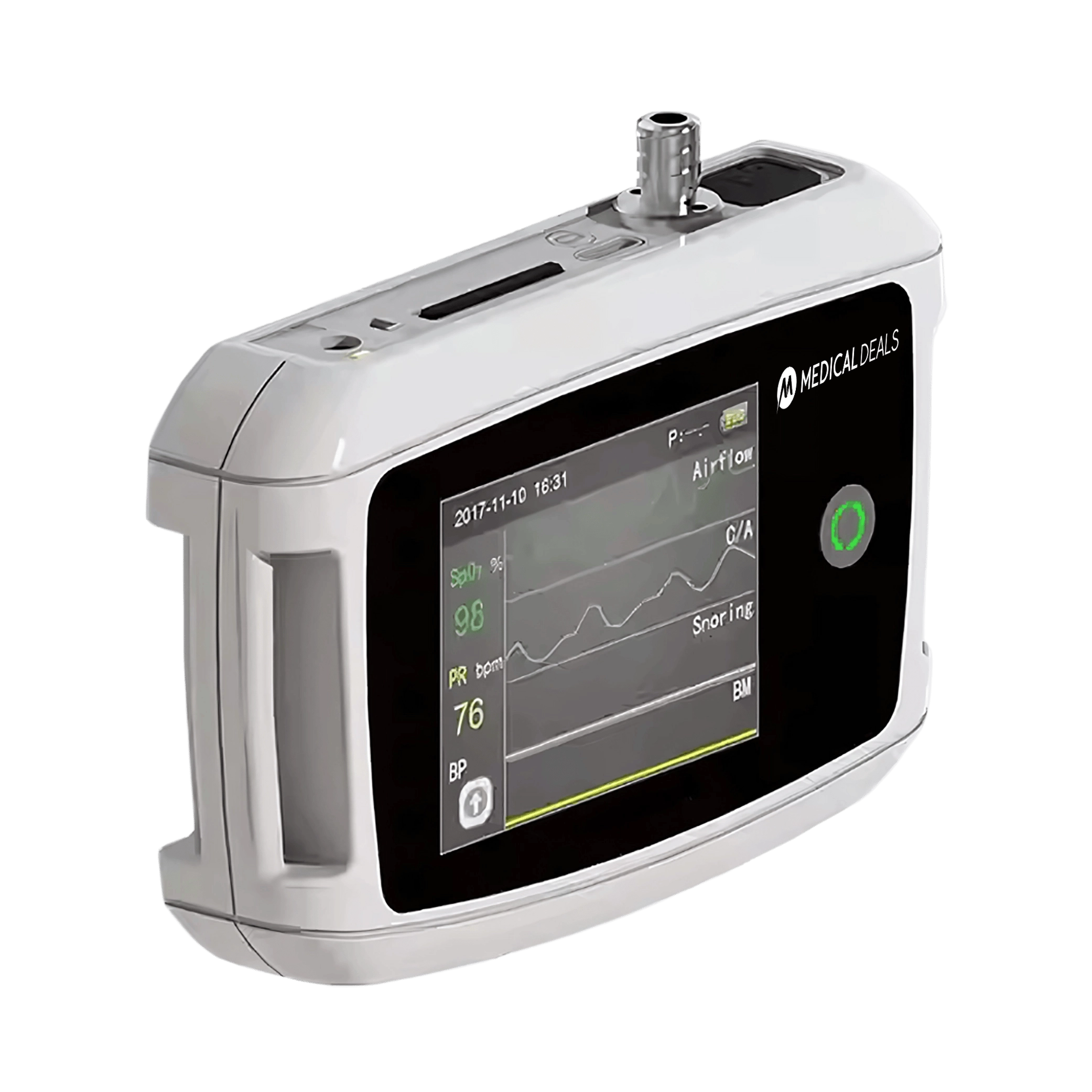

Sleep Tracking Device MD-STD-1000 features a 2.8-inch TFT display (320 × 240 pixels) for clear real-time data visualization. It is equipped with a 12-bit ADC (0–4095) and a 50–250Hz sampling rate for high-resolution monitoring. With ample data storage capacity, it enables continuous monitoring without frequent data transfers. Our product is designed to deliver professional-grade sleep diagnostics in both clinical and home settings.
Specifications
| Screen | Size: 2.8inch TFT Resolution: 320 × 240 pixels |
| Data Resolution | ADC: 12-bit (0 to 4095) |
| Sampling Rate | 50 to 250Hz |
| Recorded Channels | Airflow, snore, Thoracic/Abdominal movement, SpO2, pulse rate, PPG, body position, body movement, CPAP titration |
| Body Position | Supine, prone, right side, left side, upright |
| SpO2 | 80% to 100%, tolerance ≤ ±2% 70% to 79%, tolerance ≤±3% |
| Pulse | 30 to 240 bpm |
| Data Storage | 16G SD card |
| Battery | 3.7V, 4000mAh chargeable lithium battery (built-in) |
| Power | Input: 100 to 240V, 50/60Hz, 0.5A Max Output: 5.0V, 2.0A |
| Dimensions | 12.5 × 8 × 2.4 cm |
| Net Weight | 190g with battery |
| Gross Weight | 2Kg |
Features
High-Definition TFT Display
Multimodal Physiological Signal Acquisition
AI-Driven Body Position Recognition
Precise Oxygen Saturation Measurement
Extended Cardiovascular Monitoring
Expansive Data Storage
Long-Lasting Power Efficiency
Standard Accessories
| Accessories | Quantity |
| Nasal Cannula | 1 pc |
| Oximeter probe | 1 pc |
| SD card | 1 pc |
| SD reader | 1 pc |
| Fixing belt | 1 pc |
| Adapter | 1 pc |
| Luer Connector | 1 pc |
| Carry bag | 1 pc |
| User Manual | 1 pc |
Applications
Sleep Tracking Device MD-STD-1000 is designed for the advanced detection and management of sleep-related disorders, including obstructive sleep apnea (OSA), central sleep apnea (CSA), complex sleep apnea syndrome and nocturnal hypoxemia.
