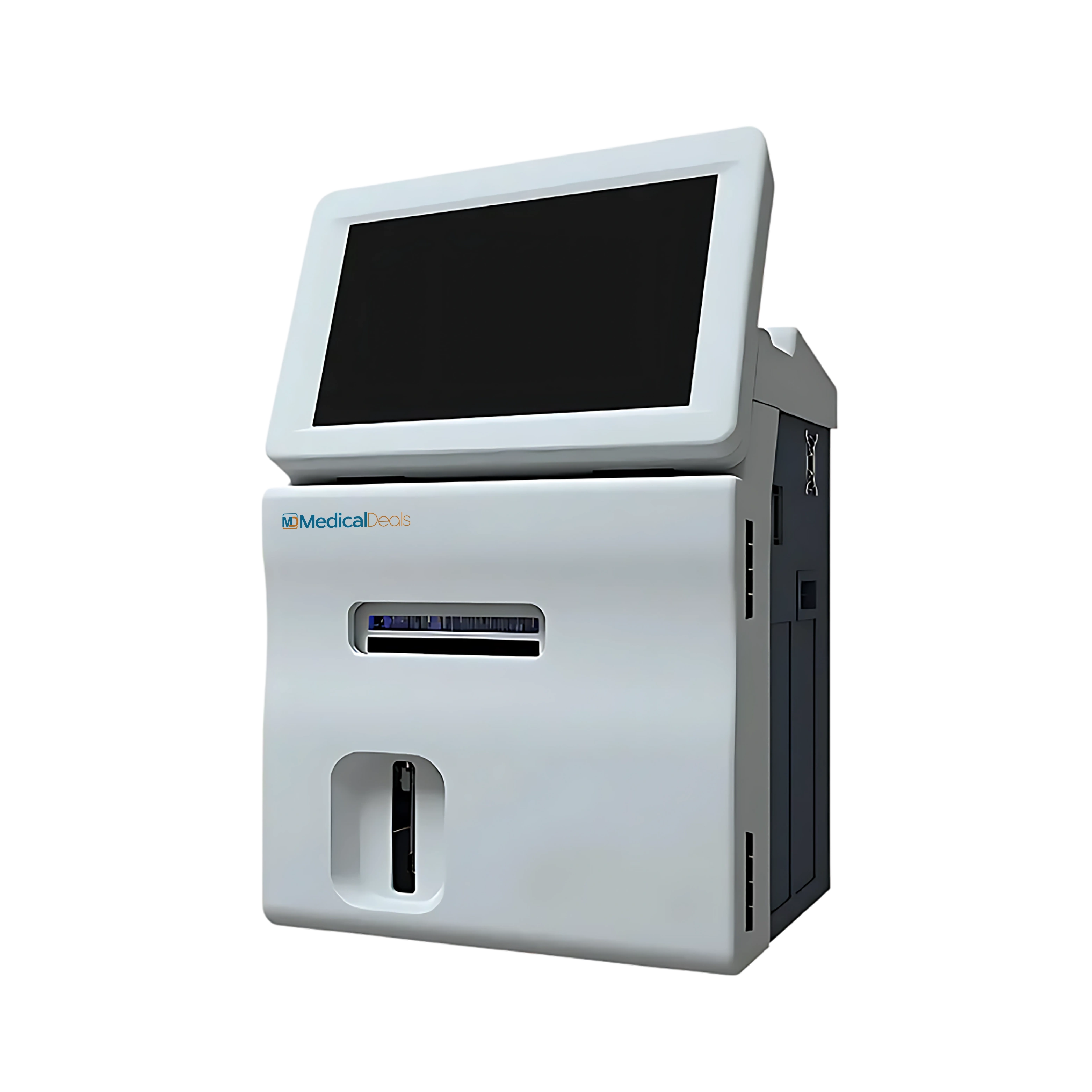

Blood Gas and pH Analyzer MD-BGP-1000 features a 12.1-inch high-resolution color LCD touchscreen with an intuitive graphical interface for seamless navigation. This analyzer measures 10 critical parameters while also calculating six additional indices, such as HCO₃⁻ and TCO₂. It also includes a built-in barcode scanner that facilitates seamless sample and reagent identification, improving workflow efficiency. Our product's compact yet robust design makes it an ideal solution for intensive care units that require high-precision diagnostics.
Specifications
| Display | 12.1-inch high-resolution color LCD touchscreen |
| Measured Parameters | pH, pCO₂, pO₂, Na⁺, K⁺, Cl⁻, Ca²⁺, Hct, Glu, Lac |
| Calculated Parameters | HCO₃⁻ (Bicarbonate), TCO₂ (Total CO₂), BE (Base Excess), sO₂ (Oxygen Saturation), Anion Gap |
| Sample Types | Whole blood, plasma, serum, cerebrospinal fluid (CSF), arterial/venous blood |
| Sample Volume | 70 to 120 µL (depending on selected tests) |
| Analysis Time | ~60 sec (Glucose or Lactate: ≤90 sec) |
| Operating Conditions | Temperature: 15-30°C Humidity: ≤85% RH (non-condensing) |
| Measurement Technology | Ion-selective electrodes (ISE) and amperometry for gas analysis |
| Electrode Lifespan | 6 months (depending on usage) |
| User Interface | Graphical interface with intuitive navigation |
| Data Storage | Up to 100,000 test results with patient ID, time-stamped |
| Data Connectivity | RS232, USB, LAN, Wi-Fi (optional), LIS/HIS integration (HL7) |
| Barcode Scanner | Built-in CCD scanner (supports 1D & 2D barcodes) |
| Reagent System | Automatic cartridge-based system, self-calibrating |
| Quality Control | Automatic calibration and QC with multi-level control |
| Printer Support | External laser printer via USB |
| Power Supply | 100 to 240V AC, 50/60Hz |
| Dimensions | Approx. 420 × 380 × 480 mm |
| Weight | 18 kg |
Features
High-Resolution LCD display
Multi-Parameter Measurement
Advanced Ion-Selective Electrode Technology
Automated Reagent Management
Amperometry-Based Gas Analysis
Low Sample Volume Requirement
Ultra-Fast Analysis Time
Customizable Test Panels
Multi-Level Quality Control System
HL7-Compliant LIS/HIS Integration
Built-in CCD Barcode Scanner
Multi-Mode Connectivity
Standard Accessories
Accessories | Quantity |
Main unit of the analyzer (AC 100 to 240V) | 1 |
pCO2/PO2 intergrated electrode | 1 |
TH/HCT intergrated electrode | 1 |
Ref electrode | 1 |
pH electrode | 1 |
Glu/Lac unit | 1 |
K electrode | 1 |
Na electrode | 1 |
Cl electrode | 1 |
Ca electrode | 1 |
User manual | 1 |
LAC/GLU Electrode | 1 |
Optional Accessories
| PCO2/PCO2 intergrated Electrode (6 months warranty) | 1 |
| TH/HCT intergrated electrode | 1 |
| Ref electrode | 1 |
| pH electrode | 1 |
| K electrode | 1 |
| Na electrode | 1 |
| Cl electrode | 1 |
| Ca electrode | 1 |
| Lac/GLU intergrated Electrode | 1 |
| Ion Electrode Sealing Ring (Silicon rubber φ2.6 × 1.9 mm) | 1 |
| pCO2, pO2 electrode sealing ring (Silicon rubber φ2.8 × 2.0 mm) | 1 |
| Needle for blockage elimination (φ 0.6 × 160mm) | 1 |
| Auxiliary pump tube for Blood Gas (BPT, 1.6 × 4.8 × 3） | 1 |
| Tektronix Tube (φ 2.5 × 0.8 × 120 mm) only for probe | 1 |
| Tektronix Tube (φ 2.74 × 1.02 × 200 mm) only for pump | 1 |
| Printer paper (φ 50 × 80 mm) | 1 |
| Needle wiper | 1 |
| Resistive touch pen (0.5 × 150mm) | 1 |
| Maintenance electrode A | 1 |
| Maintenance electrode B | 1 |
| Ion Dummy electrode (optional) | 1 |
| O’ ring (2.6 × 1.9 mm) | 1 |
| Power cord | 1 |
| Fuse | 1 |
| Quality control (H:2ml × 10+ M:2ml × 10 + L:2ml × 10 per pack) | 1 |
| Quality control (H:2ml × 30 or M:2ml × 30, or L: 2ml × 30 per pack) | 1 |
| Blood Gas Reagent Pack (50 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (75 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (100 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (150 tests per pack with 46 days validity) | 1 |
| Blood Gas Reagent Pack (200 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (300 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (400 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (500 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (50 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (75 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (100 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (150 tests per pack with 46 days validity) | 1 |
| Blood Gas Reagent Pack (200 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (300 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (400 tests per pack with 45 days validity) | 1 |
| Blood Gas Reagent Pack (500 tests per pack with 45 days validity) | 1 |
| Flush solutions （without GLU/LAC） | 1 |
| Flush solutions （with GLU/LAC） | 1 |
| Refill solution for ISE electrodes (K/Na/Cl/Ca/pH, 0.8ml × 5 pieces) | 1 |
| Refill solution for Ref electrode (20ml × 1piece) | 1 |
| Refill solution for pO2 electrode （1 PCS） | 1 |
| Refill solution for pCO2 electrode （1 PCS） | 1 |
| Multi-Enzyme Deproteinizer | 1 |
Applications
Blood Gas and pH Analyzer MD-BGP-1000 is ideal for critical care, emergency medicine, anesthesia, neonatal and pediatric monitoring, cardiovascular surgery, dialysis management, respiratory therapy, metabolic disorder assessment, sepsis detection, and research laboratories.
Medical Deals' Blood Gas and pH Analyzers are designed to deliver rapid and precise analysis of blood gases, electrolytes, and metabolites. Their advanced microfluidic system optimizes reagent usage, reducing operational costs while maintaining superior analytical performance. They feature an intuitive, high-resolution touchscreen that offers a seamless user experience with an intelligent navigation system for streamlined operation. Our product embodies excellence in medical diagnostics, reinforcing its reputation as a trusted solution for healthcare institutions.
