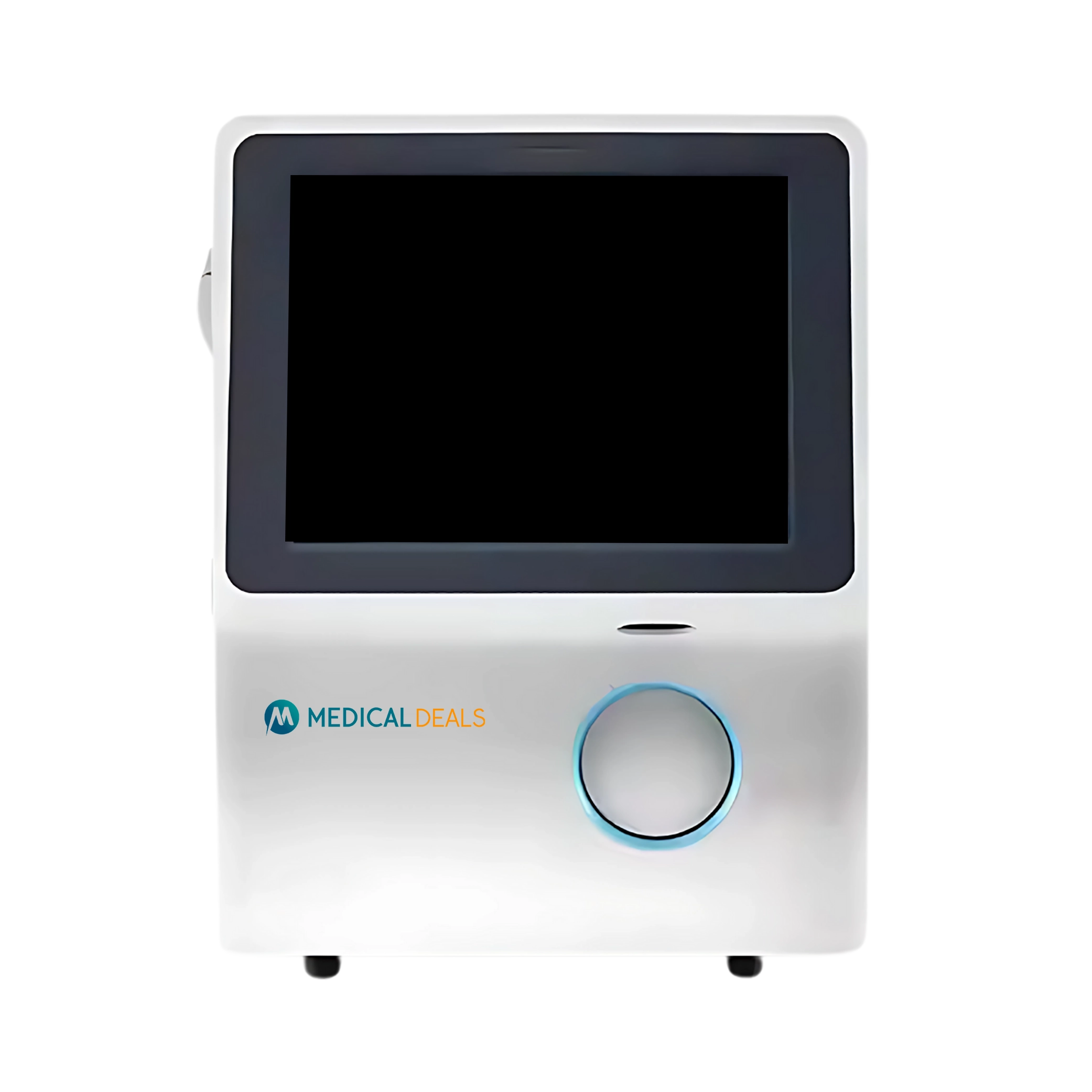

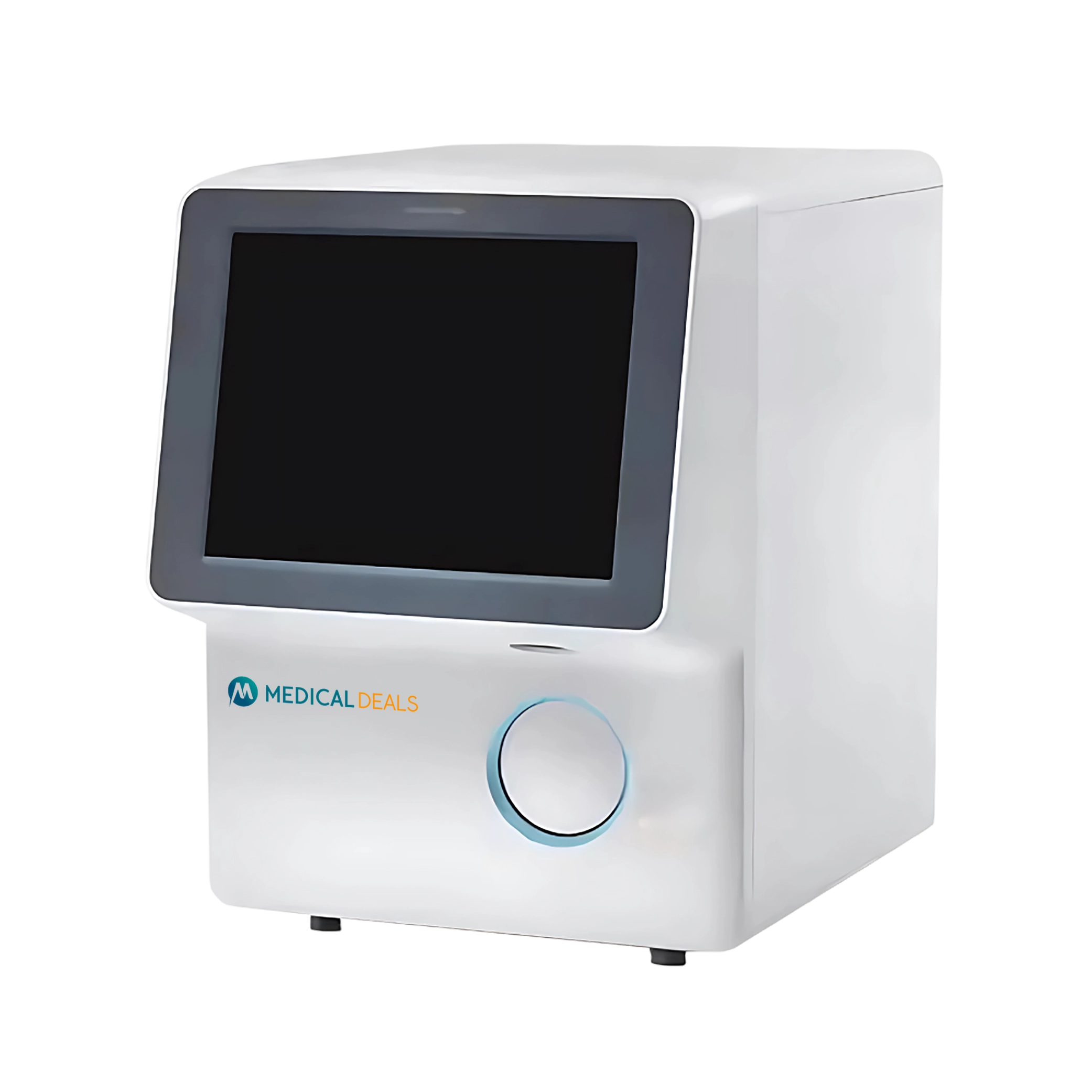

CBC Analyzer MD-CA-1001 operates with a minimal sample volume of ≤9μL in whole blood mode and ≤20μL in prediluted mode. It generates three histograms for WBC, RBC, and PLT, providing a comprehensive visual representation of cellular distributions. Equipped with a user-friendly touchscreen interface, the system supports multiple languages to accommodate a diverse range of users. Our product combines precision, ease of use, and technological sophistication, making it a valuable asset for modern medical diagnostics.
$ 4050 : Each of 1
Specifications
| Principles | Impedance method for WBC, RBC, and PLT counting; Cyanide-free reagent for hemoglobin test |
| Parameters | 20 parameters: WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR |
| Histograms | 3 histograms for WBC, RBC, and PLT |
| Sample Volume | Prediluted mode: Less than or equal to 20μL Whole blood mode: Less than or equal to 9μL |
| Parameter performance | WBC performance: Linear Range: 0 to 100 Precision: Less than or equal to 3.5% (4.0 to 6.9); Less than or equal to 2.0% (7.0 to 15.0) Carryover: Less than or equal to 0.5 % RBC performance Linear Range: 0 to 0.800 Precision: Less than or equal to 2.0% (3.50 to 6.5) Carryover: Less than or equal to 0.5 % HGB (g/L) Linear Range: 0 to 280 Precision: Less than or equal to 2.0% (100 to 180) Carryover: Less than or equal to 0.5 % MCV (fL) Precision: Less than or equal to 1.0% (70.0 to 110.0) Carryover: Less than or equal to 0.5 % PLT (10⁹/L) Linear Range: 0 to 1000 Precision: Less than or equal to 5.0% (100 to 500) Carryover: Less than or equal to 1.0% |
| Throughput | 40 samples per hour |
| Display | 10.4-inch TFT Touch Screen |
| Language | Multi-language support (Chinese, English, Spanish, Portuguese, Russian, French, Bahasa Indonesia) |
| Data Storage | Up to 100,000 results (numeric & graphical information) |
| Communication | LAN Port supports HL7 protocol, Bi-directional LIS |
| Interface | 4 USB ports (for external printer, software upgrade, barcode reader, external WiFi, keyboard, mouse), LAN port (1) |
| Printout | Thermal recorder, 50 mm wide paper, various printout formats |
| Power Requirement | Voltage: 100V to 240V ± 10% Frequency: (50Hz/60Hz) ±1Hz Power Consumption: Less than or equal to 180VA |
| Environmental Conditions | Temperature: 15°C to 30°C Humidity: 10% to 90% Air Pressure: 70kPa to 106kPa |
| Dimensions | 410 × 300 × 400 mm |
| Weight | Less than or equal to 20Kg |
Features
High-precision impedance technology
Multi-layered histogram analysis
Ultra-low sample volume
Microfluidic sampling technology,
AI-enhanced operational system
High-definition touchscreen interface
Multilingual AI Voice Assistance
Automated Smart Print Engine
Integrated LIS connectivity
Voice-to-Text Annotations
Instant QR Code & RFID Tagging
Adaptive formatting algorithms
Applications
CBC Analyzer MD-CA-1001 is essential for diagnosing and monitoring hematological disorders such as thrombocytopenia, and polycythemia, as well as detecting infections, providing precise and rapid blood cell analysis for effective disease management.
Catalog
Medical Deals CBC Analyzers deliver comprehensive Complete Blood Count (CBC) assessments with exceptional accuracy and speed. Their high-throughput capability enables the processing of multiple samples per hour, significantly optimizing laboratory workflow. They feature automatic clog removal and real-time self-check functions, ensuring consistent performance with minimal maintenance. Our product delivers superior performance, advanced diagnostics, and user-friendly design for precise hematological investigations.
$ 6804
$ 5670
$ 4050
$ 3375
