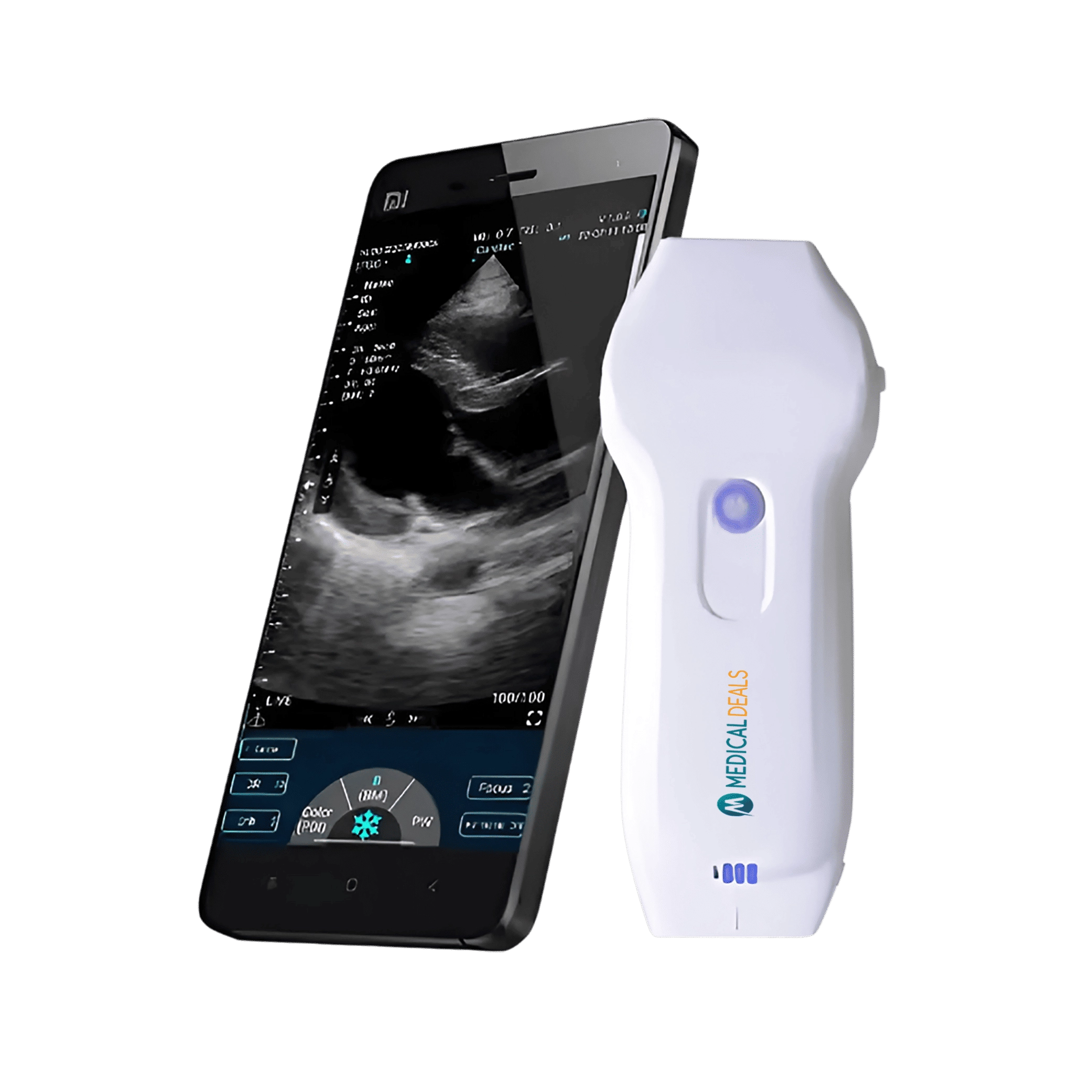

Handheld Ultrasound Device MD-HUSG-1002 operates at a 7.5 to10 MHz frequency range, delivering exceptional image clarity for vascular applications. With a scan depth of 20 to 100 mm, it provides optimal resolution for diverse clinical needs. It allows users to adjust settings according to their needs for optimized image quality. It connects via Wi-Fi, enabling easy data transfer to compatible devices. Our product resolution for both routine and specialized diagnostic procedures.
Specifications
| Probe type | Wireless linear probe |
| Frequency | Linear: 7.5 to 10Mhz |
| Scan Depth | Linear: 20 to 100mm |
| Length | 45 mm |
| Elements | 96 |
| Presets | Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve |
| Software adjustable parameter | GN (gain), D(Depth), ENH(Enhancement), DR (Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote |
| Display Mode | B, B/M, B+M, PW Doppler, Color Doppler, Power Doppler |
| Measurement | B: Length, Area, Circumference, Angle, Trace, Distance B+M: Heart rate, Time, Distance B+PW: Velocity, Heart rate (2), S/D, Depth |
| Languages | Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil) |
| Connection | Wi Fi (802.11n/20MHz/5G) |
| Battery | 1350 mAh |
| Battery life | 5 to 8 years |
| Working hours | Working time: 1.5 to 2 hours Standby time: 4 hours |
| Dimensions | 115 × 60 × 20 mm |
| Weight | 102g |
Features
Applications
Handheld Ultrasound Device MD-HUSG-1002 excels in vascular imaging, musculoskeletal assessments, cardiac evaluations, nerve imaging, and biopsy guidance for precise diagnostics and procedures.
MedicalDeals Portable Ultrasound System feature advanced imaging capabilities, providing high-resolution ultrasound images with exceptional clarity. Their expansive touch-panel interface provides control over imaging parameters and patient data management. They are outfitted with a variety of transducers optimized for various frequencies and clinical uses. Enhanced connectivity options enable integration with hospital networks, facilitating patient care and data sharing. Our Portable Ultrasound System supports multiple languages, ensuring easy accessibility.
