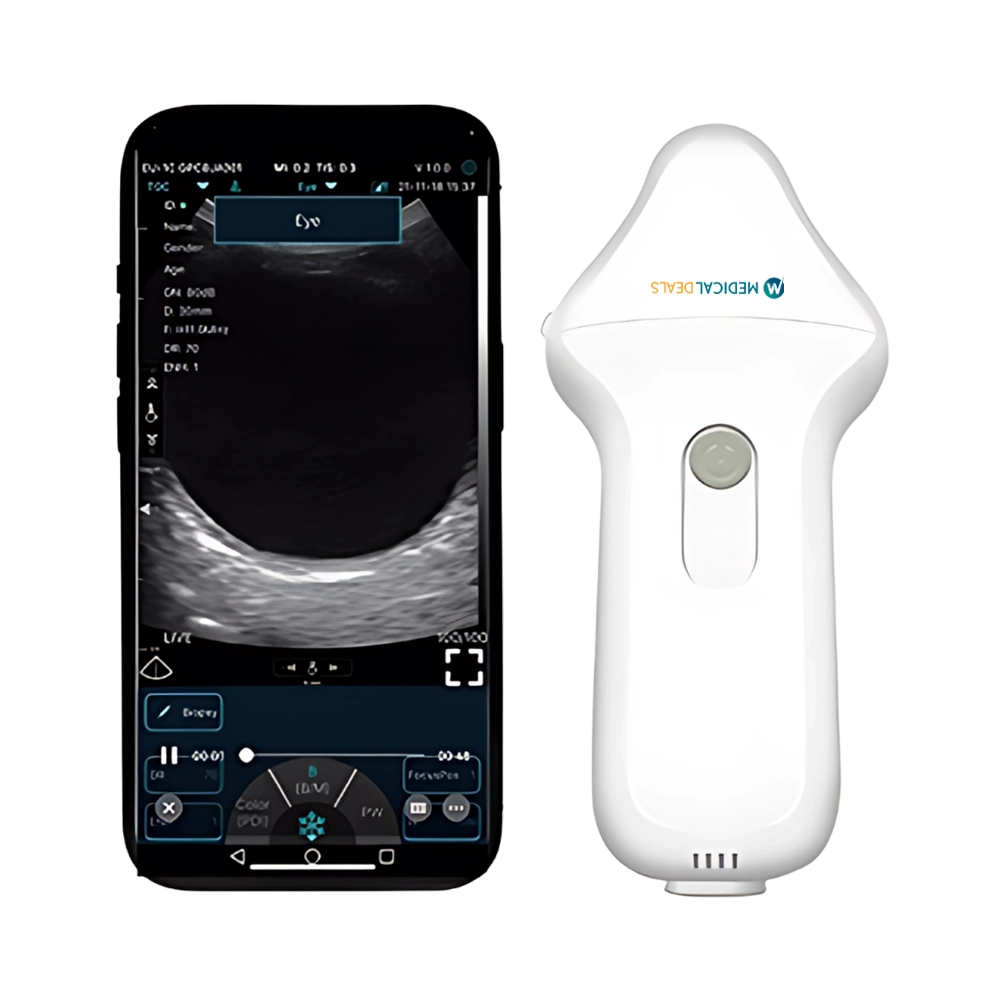

Handheld Ultrasound Device MD-HUSG-1012 operates within a frequency range of 8 to 11 MHz, ensuring precise resolution. The device offers a scan depth of 30 to 70 mm, allowing for comprehensive ocular examination. It includes software-adjustable parameters such as a dynamic range (DR) and focus position for customizable settings. Our product is an indispensable tool for modern ophthalmology, providing clinicians with the highest level of diagnostic accuracy.
Specifications
| Probe type | Electronic array probe |
| Frequency | 8 to 11 MHz |
| Scan Depth | 30 to 70 mm |
| Elements | 128 |
| Channel | 64 |
| Frame rate | 24 f/s |
| Display Mode | B, B/M, color, PW, PDI |
| Software adjustable parameter | GN (gain), D(Depth), ENH(Enhancement), DR (Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down. |
| Measurement | B: Length, Area/ Circumference, Angle, Trace, Distance B+M: Heart rate, Time, Distance B+PW: Velocity, Heart rate (2), S/D, Depth |
| Cine play | 100/ 100/200/500/1000 |
| Languages | Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil) |
| Connection type | Built-in 802.11.n / 20Mhz/ 5G WIFI(AP) |
| Compatible platform | Android, IOS, Windows |
| Battery | by built-in 2800mAh battery |
| Battery life | 5 to 8 hours |
| Working hours | Working time: 3 hours Standby time: more than 5 hours |
| Charging | Wireless charging |
| Weight | 103g |
Features
Applications
Handheld Ultrasound Device MD-HUSG-1012 probe is essential for diagnosing retinal disorders, glaucoma, macular degeneration, ocular tumors, and vascular abnormalities, while assessing ocular blood flow and segmental anatomy.
MedicalDeals Portable Ultrasound System feature advanced imaging capabilities, providing high-resolution ultrasound images with exceptional clarity. Their expansive touch-panel interface provides control over imaging parameters and patient data management. They are outfitted with a variety of transducers optimized for various frequencies and clinical uses. Enhanced connectivity options enable integration with hospital networks, facilitating patient care and data sharing. Our Portable Ultrasound System supports multiple languages, ensuring easy accessibility.
