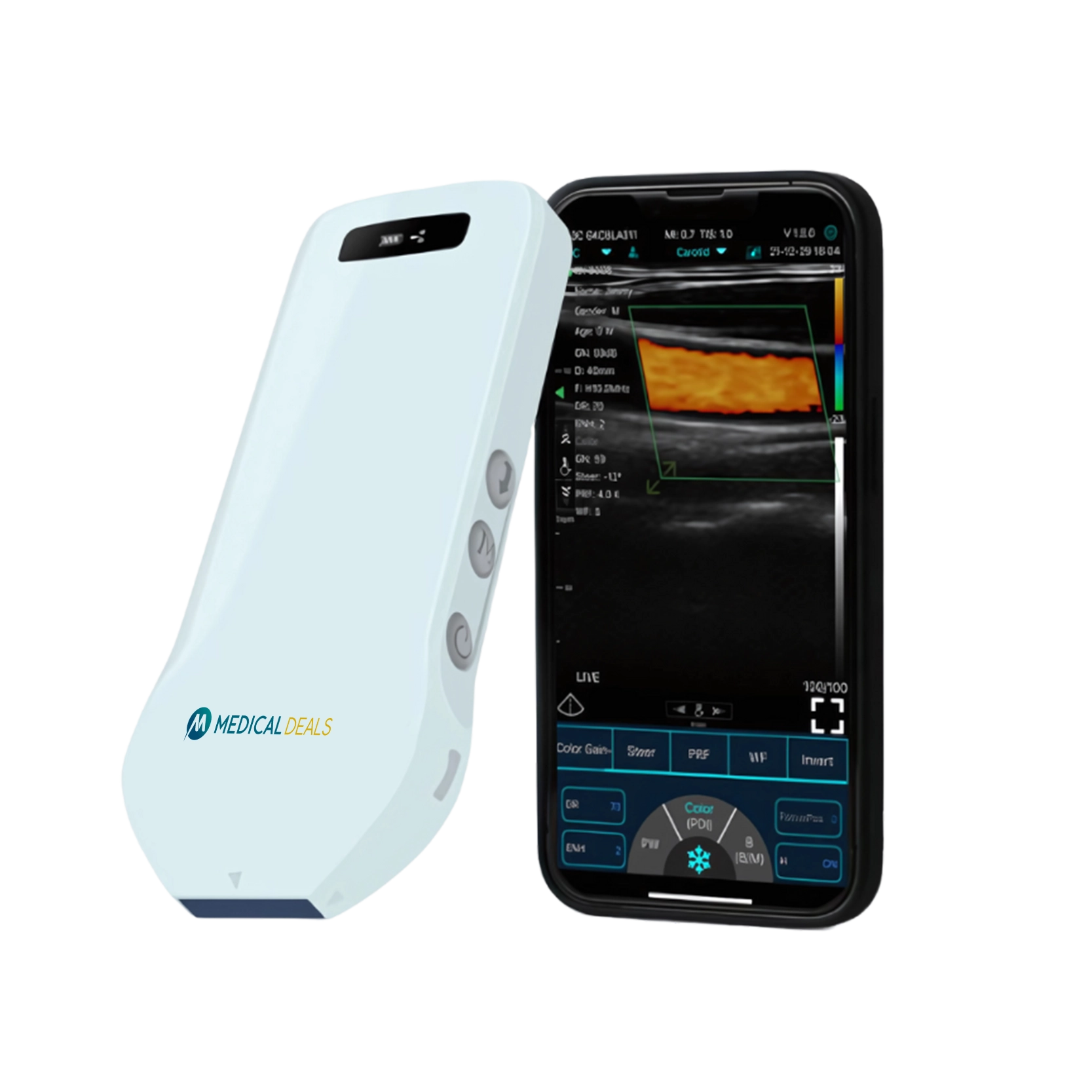

Handheld Ultrasound Device MD-HUSG-1006 features a high-frequency range of 10 to 14 MHz, for superficial applications in clinical setup. With a compact L25 footprint, 192 elements, and a 64-channel design, it delivers high-definition images. Its multi-modal imaging suite, including B and B+M modes, offers comprehensive diagnostic capabilities. Our product is an ideal solution for modern diagnostic imaging, combining portability, intelligence, and precision in a single, advanced device.
Specifications
| Probe type | Wireless micro linear probe |
| Frequency | 10 to 14 MHz |
| Footprint | L25 |
| Elements | 192 |
| Channel | 64 |
| Scan Depth | 20 to 80 mm |
| Frame rate | 24 f/s |
| Display Mode | B Mode, B+M, PW Doppler, Color Doppler, Power Doppler |
| Presets | MSK, Breast, Thyroid, Superficial, Vascular, Pediatrics, Carotid, Small Parts |
| Software adjustable parameter | GN (gain), D(depth), ENH (enhancement), DR (dynamic range), F(frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/rightup/down |
| Measurement | B: Length, Area/Circumference, Angle, Trace, Distance B+M: Heart rate, Time, Distance B+PW: Velocity, Heart rate (2), S/D, Depth, Time |
| Clip loop | 100/200/500/1000 frame |
| Waterproof grade | IP68 |
| Image storage format | jpg, avi, Mp4 and DICOM |
| Languages | Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil) |
| Connection type | Built-in WiF 802.11n/20MHz/2.4G/5G |
| Compatible platform | Android, IOS, Windows |
| Battery | 4200mAh, 3.7V |
| Battery life | 5 to 8 years |
| Working hours | Working time: more than or equal to 3 hours Standby time: more than or equal to 12 hours |
| Charging | Wireless charging |
| Dimensions | 158 × 70 × 30 mm |
| weight | 212 g |
Features
Standard Accessories
Applications
Handheld Ultrasound Device MD-HUSG-1006 excels in musculoskeletal, vascular, breast, thyroid, pediatric, and small-part imaging, offering AI-driven precision, Doppler analysis, and wireless connectivity for rapid, high-quality diagnostics.
MedicalDeals Portable Ultrasound System feature advanced imaging capabilities, providing high-resolution ultrasound images with exceptional clarity. Their expansive touch-panel interface provides control over imaging parameters and patient data management. They are outfitted with a variety of transducers optimized for various frequencies and clinical uses. Enhanced connectivity options enable integration with hospital networks, facilitating patient care and data sharing. Our Portable Ultrasound System supports multiple languages, ensuring easy accessibility.
