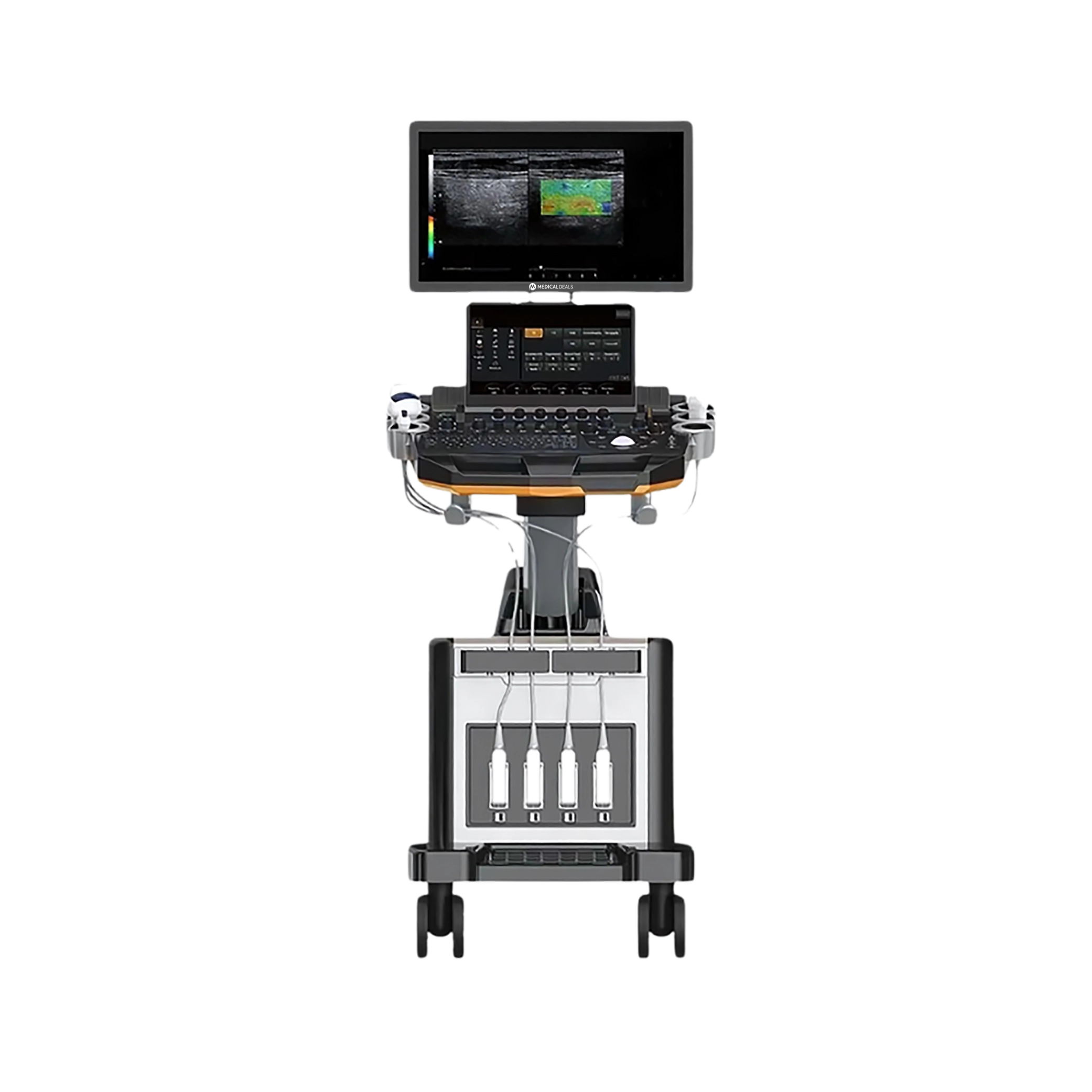

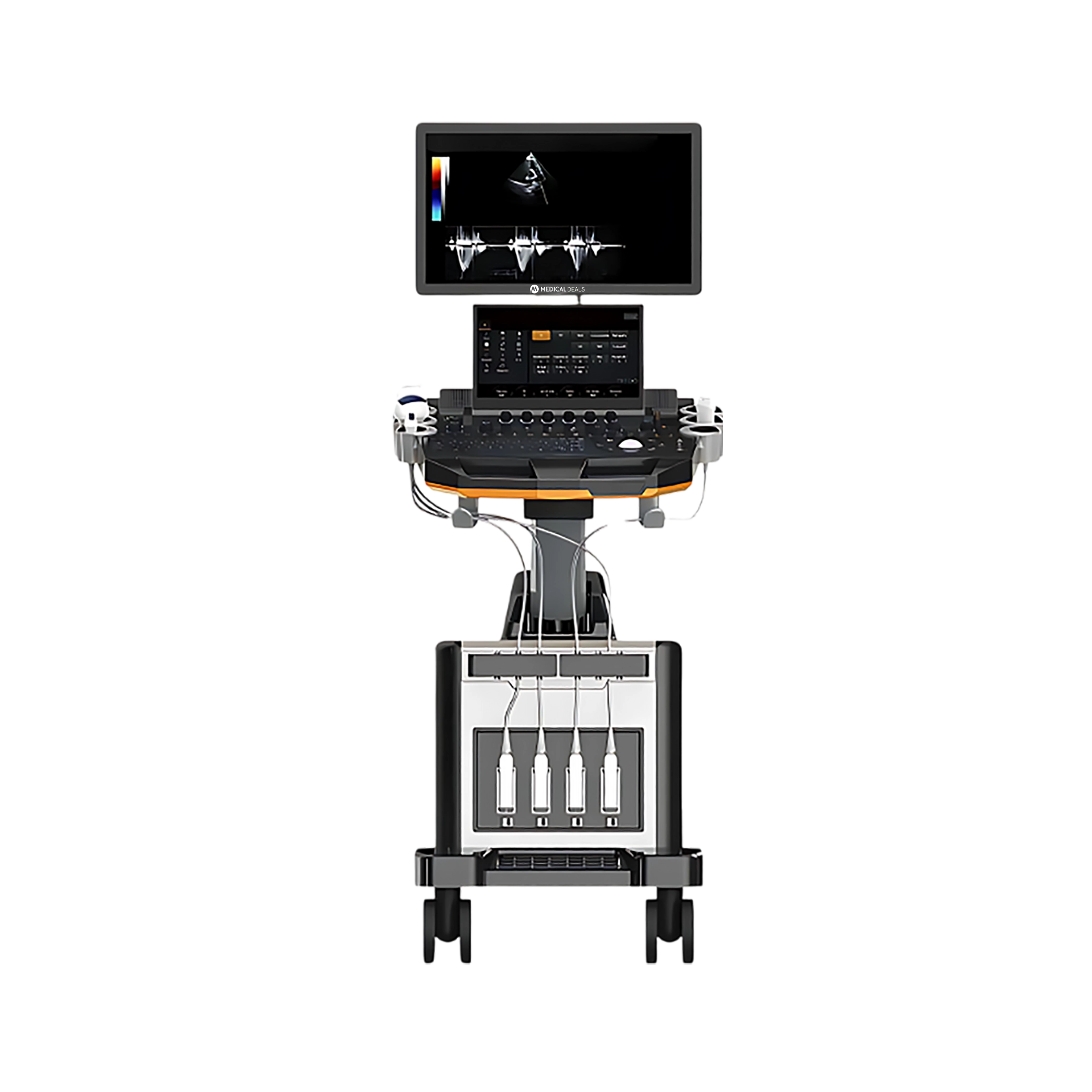

Portable Ultrasound System MD-PUSG-1000 features advanced imaging technologies like SRI, TDI, THI, and FHI. It includes a 21.5-inch LED medicinal monitor and a responsive 13.3-inch touch screen. Utilizes ADC and beam reconstruction probe technology for faster response times. It can perform real-time 3D/4D imaging. The system provides a versatile platform with adjustable height, rotation, and mobility.
Specifications
| Display | 21.5inch LED medicinal monitor + 13.3 inch touch screen |
| Platform | Lifting and rotating, adjustable height, movable rotation |
| Spectrum Envelope Function | Real-time, manual, etc. optional modes |
| Auto IMT Measurement | Automatic angle optimization |
| Puncture Enhancement | iNeedle puncture enhancements, built-in ultrasound teaching software |
| ST-U Technology Platform | CPU + GPU dual-core processing architecture |
| Probe Technology | ADC + beam reconstruction, 10x faster response |
| Measurement Packages | Rich package including PDI, PW, CW, 2D, 3D, 4D, TDI, Auto IMT/NT, Elastography, Puncture enhancement, Panoramic, Trapezoid Imaging, Color M, Anatomical M mode |
| Operating System | Windows |
| Physical Clipboard | Save and manage images directly on screen |
| System Upgrade | On-the-spot upgrade function |
| Presupposition | Preset inspection conditions for optimal image |
| Probe Interfaces | 4 |
| Fundamental Frequencies (Probes) | Various frequencies for different probes |
| Harmonic Frequencies (Probes) | Harmonic frequencies specified for each probe type |
| Gain | 0 to 100, Step 2 adjustable |
| TGC (Time Gain Compensation) | 8 segment adjustable |
| Maximum Focus Points | ≥7, movable throughout the process |
| Speckle Reduction | 0 to 5, 5 levels |
| Space Synthesis | 0 to 2, 2 levels (Liner probe: 3 levels, cardiac probe: 0) |
| Dynamic Range | 30 to 180, 35 levels, step 5 adjustable |
| Line Density | Low, middle, high, 3 levels |
| Frame Correlation | 0 to 4, 4 levels |
| Noise Reduction | 0 to 5, 5 levels |
| Edge Enhancement | 0 to 5, 5 levels |
| Sound Power | 2 to 10, 9 levels |
| Additional Imaging Modes | Free hand 3D, Real-time 3D/4D, Panoramic Imaging, Deflection Imaging, Trapezoidal Imaging |
| Advanced Imaging Features | Speckle Reduce Imaging (SRI), Fusion Harmonic Imaging (FHI), Tissue Doppler Imaging (TDI), Strain Rate Imaging (SRI), Tissue Harmonic Imaging (THI) |
| Measurement Software Packages | Advanced measurement, report, and case management software packages |
| Specialized Functions | Carotid artery intima measurement thickness (IMT), Automatic spectral envelope measurement, Full digital transmission and reception of beam synthesizer |
| Power Consumption | 350W |
| Power Supply | 110 to 240V |
| Dimension | 607 × 976 × 1458 mm |
| Packaging Dimension | 1260 × 720 × 1420 mm |
| Weight | 89 Kg |
| Packaging Weight | 160 Kg |
Features
New generation technology
Superior image quality
Auto IMT measurement
Puncture enhancement function
Full digital beam synthesis
New technology probes
Supports multiple languages
On-the-spot upgrade function
Simple and efficient workflow
Easy-to-use interface
Optional Accessories
3.5MHz Convex probe: $ 1500
7.5MHz Linear probe: $ 1500
6.5MHz Trans-vaginal probe: $ 1500
3.0MHz Phased-array probe: $ 1500
6.5MHz Rectal probe: $ 1950
5.0MHz Micro-convex probe: $ 1500
5.0MHz High-frequency phased-array probe: $ 2070
4D Volume probe: $ 3670
Applications
Our Portable Ultrasound System is used in hospitals and clinics for comprehensive diagnostic imaging across various medical specialties.
MedicalDeals Portable Ultrasound System feature advanced imaging capabilities, providing high-resolution ultrasound images with exceptional clarity. Their expansive touch-panel interface provides control over imaging parameters and patient data management. They are outfitted with a variety of transducers optimized for various frequencies and clinical uses. Enhanced connectivity options enable integration with hospital networks, facilitating patient care and data sharing. Our Portable Ultrasound System supports multiple languages, ensuring easy accessibility.
