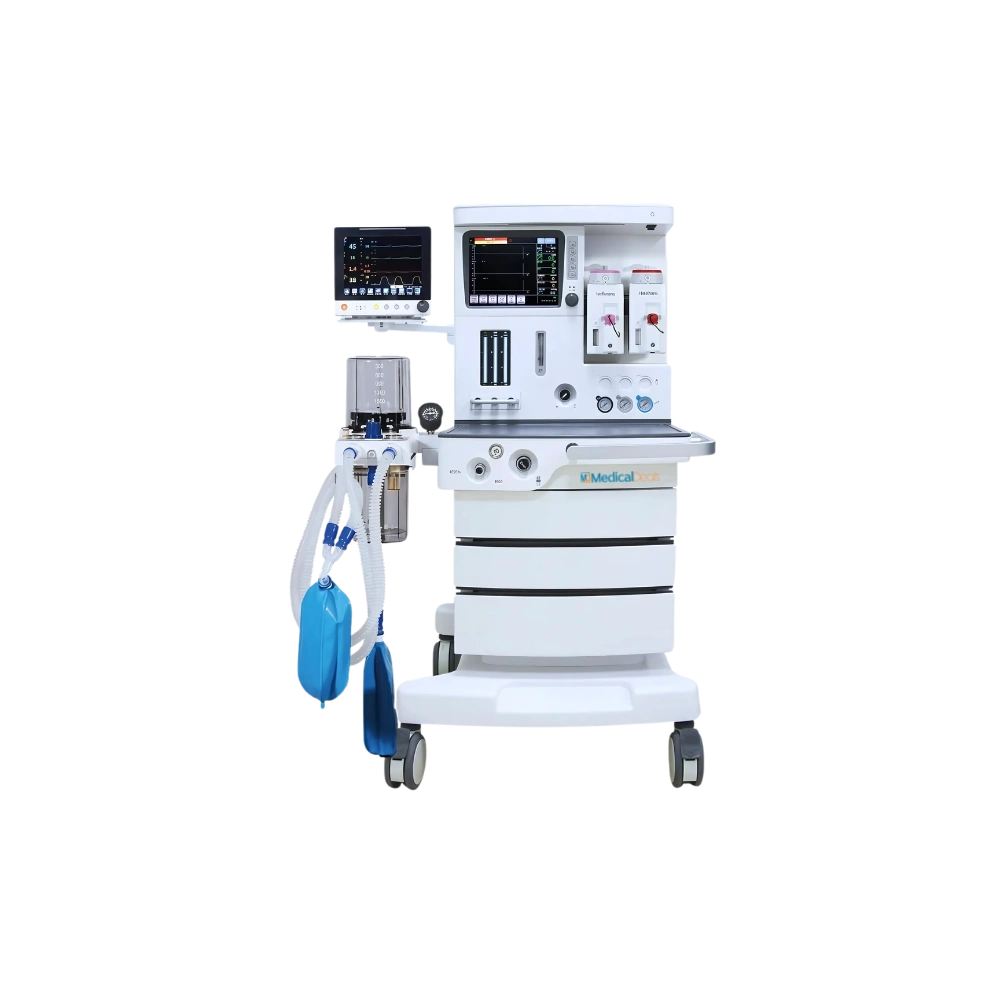

Anesthesia System MD-ANS-1005 offers precise pressure control from -20 to 0 cmH2O and flow sensitivity between 0.5 and 30 L/min. It ensures smooth interaction with the patient's breathing. It supports various respiratory needs with adjustable parameters, including tidal volume (20 to 1500 mL). This system also offers a full range of customizable ventilation modes. Our System provides efficient anesthesia delivery ideal for both adult and pediatric patients.
$ 11540 : Each of 1
Specifications
| Ventilation Modes | IPPV, PCV, A/C, SIMV, SIGH, MANUAL |
| Gas Source | O2, N2O, AIR |
| Flowmeter range | O2: 0 to 10 L/min N2O: 0 to 10 L/min |
| Rapid Oxygen Supply Range | 25 L/min to 75 L/min |
| Oxygen Concentration Range | 15 % to 100 % |
| Inspiratory Ratio (I) | VTH 4:1 to 1:8 VTL 2:1 to 1:8 |
| Tidal Volume Range | 0, 20 mL to 1500 mL |
| Minute Volume | ≥18 L/min |
| Frequency range | 1 breath /min to 100 breath /min |
| Positive End-Expiratory Pressure (PEEP) | 0 cmH2O to 30 cmH2O |
| Pressure control (PC) | 5 cmH2O to 60 cmH2O |
| Pressure Triggering Sensitivity (PTr) | -20 cmH2O to 0 cmH2O |
| Flow Trigger Sensitivity (FTr) | 0.5 L/min to 30 L/min |
| Apnea Ventilation | OFF, 5 s to 60 s |
| SIGH | 0 (off) 1/100 to 5/100 |
| Gas Pressure Range | 280 kPa to 600 kPa |
| Pressure Limit | 20 cmH2O to 100 cmH2O |
| Bellow | 1.5L |
| Oscillogram Types | P-T (Pressure-Time) F-T (Flow-Time) V-T (Volume-Time) P-V loop (Pressure-Volume Loop) F-V (Flow-Volume Loop) P - F (Pressure - Flow Loop) ETCO2-T (ETCO2-Time) |
| The AC power failure alarm | Power failure or no connection |
| Low voltage alarm for backup battery | < 10.2 ± 0.3 V |
| No tidal volume | ≤ 5 mL within 6 s |
| High oxygen concentration alarm Range | 19% to 100% |
| Low oxygen concentration alarm Range | 18% to 99% |
| High airway pressure alarm Range | 20 cmH2O to 100 cmH2O |
| Low airway pressure alarm Range | 0 cmH2O to 20 cmH2O |
| High-minute volume alarm Range | Adult (5 L/min to 20 L/min) |
| Low-minute volume alarm Range | Paed (1 L/min to 15 L/min, 0 to 10 L/min) |
| Continuous pressure alarm Range | (PEEP+1.5 kPa) over 16s |
| Suffocation warning | 5s to 60s no spontaneous ventilation |
| The maximum limited pressure | ≤ 12.5 kPa |
| Fan error | Display on screen |
| Oxygen deficit | Display on screen |
| Display | 12.1" TFT LCD touchscreen |
| Power Consumption | 85 VA |
| Power Supply | Voltage: 100 to 240 V Power Frequency: 50/60 Hz |
| Packing Dimension | 1005 × 960 × 1700 mm |
| Net Weight | 116.5 kg |
| Gross Weight | 227 kg |
Features
customizable ventilation modes
adjustable parameters
advanced monitoring
A fan error alarm
12.1" TFT LCD touchscreen
Integrated breathing circuit design
High-precision electronic flowmeter
ACGO and fast oxygen supply
Automatic decompression to ensure safety.
Built-in Battery Backup
Compact and Light-weight
Standard Accessories
Anesthetic breathing system × 1
Power cord × 1
Fuse × 8
Fuse × 1
O2 cell × 1
CO2 sensor
Breathing tube × 2
Breathing tube × 1
Breathing tube × 2
Y connector Adult × 1
Y connector Child × 1
L connector × 2
Straight connector (φ22 to φ22) × 1
Reservoir bag 1L × 1
Reservoir bag 3L × 1
Anesthetic mask adult × 1
Anesthetic mask infant × 1
Anesthesia Vaporizer × 1
High pressure O2 hose × 1
High-pressure AIR hose × 1
High pressure N2O hose × 1
Optional Accessories
Transfer and receiving system of exhaust gas × 1
Patient monitor × 1
Applications
Our Anesthesia System MD-ANS-1005 excels in various clinical settings such as ICUs, operating rooms, and anesthesiology departments, it provides a comprehensive range of advanced ventilation modes and customized respiratory management solutions.
Anesthesia System is an advanced, user-friendly anesthesia delivery system designed to meet the needs of modern healthcare facilities. Engineered for safety, accuracy, and efficiency, it features an intuitive touchscreen interface. It allows seamless control and monitoring of anesthesia parameters. With precise gas flow meters and integrated safety alarms, the system ensures optimal delivery of anesthetic gases while prioritizing patient safety. Built with adaptability in mind, Our system provides Precision Care system support for a range of patient types, from pediatric to adult.
